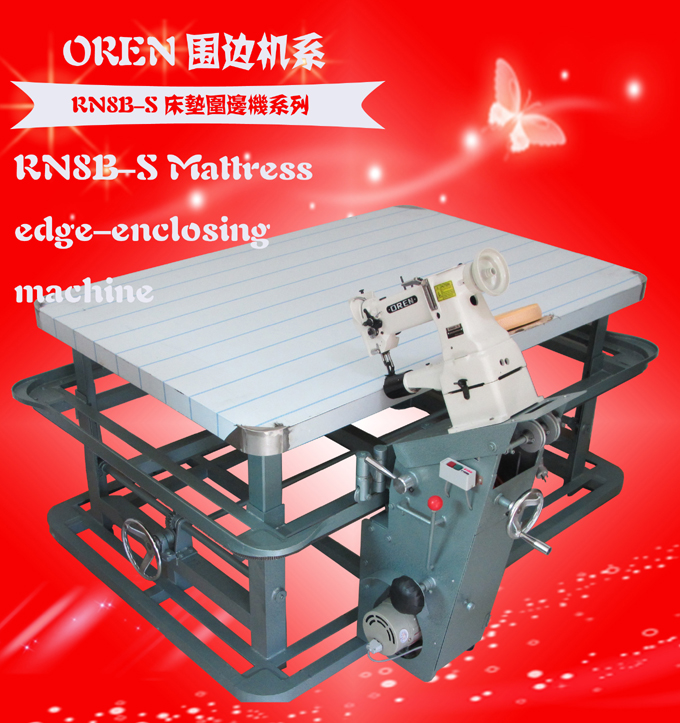

product name:The mattress sewing machine spec:RN8B-V



Product introduction:

This machine is mainly used for mattress sewing, completed between the mattress fabrics and wall cloth edge sewing work, is also applicable to other mattresses, blankets, sofa cushion, bag sewing. The automatic lifting height, to adapt to all kinds of sewing. The walking box and the head is driven by the clutch motor, angular deceleration easy control, machine head adopts sliding lever thread take-up, vertical rotary hook line, a double thread lockstitch. The upper and lower shaft with synchronous tooth belt; lever type needle type stitch regulator. The lower feed, needle feed and alternating presser foot feed, as well as the pressure foot pressure foot lift space travel, and larger stitch length, with the push and pull type stainless steel professional edge clamp; can easily deal with difficult to transport materials and multilayer thick leather. And install clutch type safety device; the machine damage in case of load, the sewing operation more stable and convenient. Push plate height adjustable, human performance is more reasonable.

Main technical parameters:

Motor power:220V 550W

The working angle:30 ° -58 °

Mattress thickness sewing range:50-500mm

Table lifting range:380mm (adjustable)

Table size: 1300 x 1930mm

               1550 x 2050mm

               1800 x 2250mm (optional)

The rotational speed (RPM): 1100-3000

maximum sewing speed: 2000 needle / min.

maximum stitch: 8.0mm

The use of needle: DP * 17

Product image display:










照片 014

照片 015

复件 照片 017

照片 020

照片 019

照片 018

照片 017

照片 016

照片 015

复件 照片 016

      People need maintenance, machine needs to be lubricated. By construction machinery lubrication oil analysis OREN from Japan, just a little, can make the machine runs at a high speed of 5000 rpm, dry grinding more than four hours. It has good lubricity and stability. The product is made using the non-ionic surface active agent a variety of natural plant extract, so in the high temperature resistant and anti rust oil There is nothing comparable to this is absolute, in addition; we also focus on the machine long time drop surface oil clean and tidy, not leak and the appearance of corrosion yellowing, off phenomenon, so that more environmental protection, health. Especially the special requirements for special equipment of external dropping. Parts of high-speed operation in the process of using, physical properties of heat caused by friction, part machine component can produce operation is not smooth or blocked, affecting the normal operation of equipment, therefore, this product uses non active lubricant of natural plant extracts, in order to move system static, variable heat as power, inhibit the friction coefficient, so the operation do not shun or death card machine component instantly returned to normal. To eliminate the heat physical properties of parts of high speed operation with the noise problem.

    This product is made of natural plant extraction and into, is colorless transparent liquid, no smell, no harm to human body, the skin, the use of more environmentally friendly, healthy, longer life. High lubrication and maintenance is suitable for high-end machinery electronic driver, CNC machine tools, precision gear box.
